23181 Cross-Weave Filament Tape – Superior Strength & Versatility
The 23181 Cross-Weave Filament Tape is a high-strength polyester-based tape reinforced with fiberglass cross-weave filaments, providing exceptional tensile strength in multiple directions. Coated with high-tack hotmelt adhesive, this tape ensures superior bonding power, making it ideal for industrial and heavy-duty applications. With a total thickness of 130μm, this PET-based tape delivers outstanding tear resistance and durability, allowing it to withstand demanding environments where standard packaging tapes fail. Thanks to its cross-weave reinforcement, it provides added structural integrity, preventing tearing even under high tension.
Key Features of 23181 Cross-Weave Filament Tape
Why Choose Cross-Weave Filament Tape Over Standard Packaging Tape?
Cross-weave filament tape offers significantly higher strength, durability, and resistance compared to traditional packaging tapes. The fiberglass reinforcement in both directions ensures superior holding power, making it ideal for demanding applications.
Feature
Cross-Weave Filament Tape
Standard Packaging Tape
Application Section – Where Can You Use 23181 Filament Tape?
Cross-weave filament tapes like the 23181 are designed for heavy-duty applications where standard packaging tapes fail. Common Applications:
With its high-strength reinforcement and strong adhesive properties, this industrial-grade filament tape provides a reliable and long-lasting solution for securing and repairing heavy-duty materials.
To meet specific industry requirements, our 23181 Cross-Weave Filament Tape can be tailored with various converting options, ensuring an efficient and optimized application process.
These customized processing options allow seamless integration into manual applications and automated packaging lines.

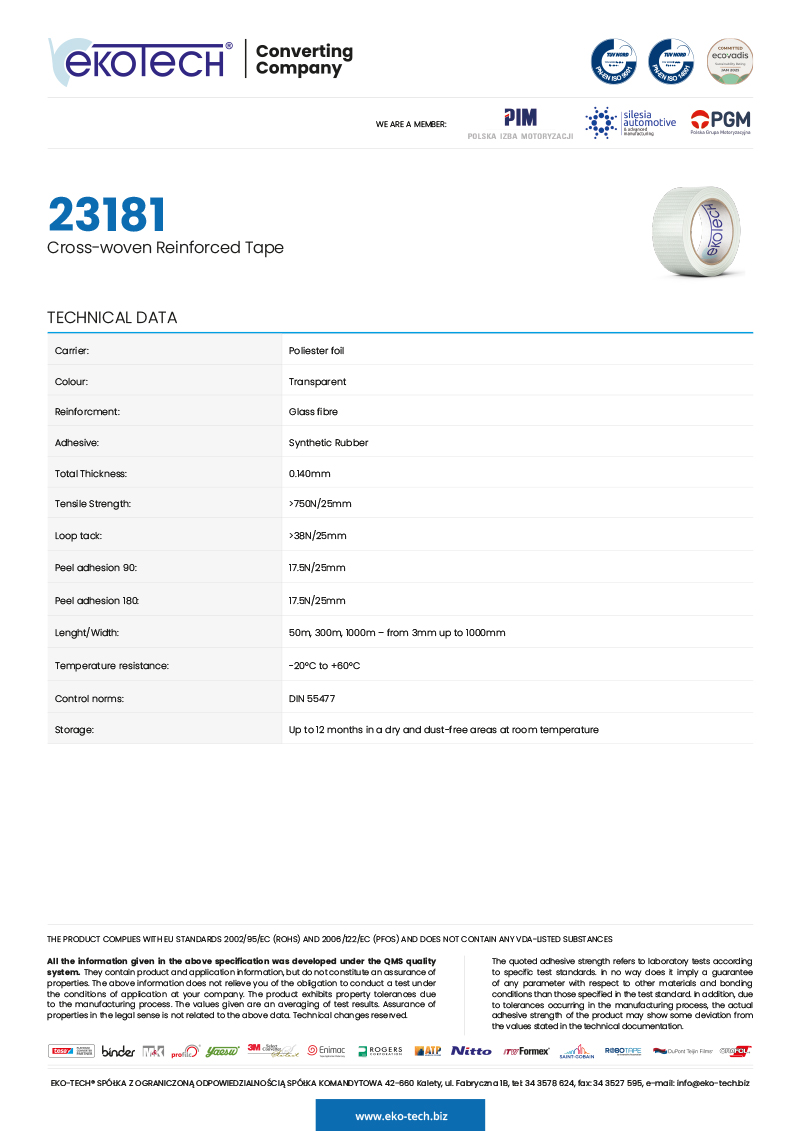

Technical data:
Carrier: Poliester foil
Colour: Transparent
Reinforcment: Glass fibre
Adhesive: Synthetic Rubber
Total Thickness: 0.140mm
Tensile Strength: >750N/25mm
Loop tack: >38N/25mm
Peel adhesion 90: 17.5N/25mm
Peel adhesion 180: 17.5N/25mm
Lenght/Width: 50m, 300m, 1000m – from 3mm up to 1000mm
Temperature resistance: -20°C to +60°C
Control norms: DIN 55477
Storage: Up to 12 months in a dry and dust-free areas at room temperature
