3M™ VHB™ Architectural & Structural Glazing Tapes

Q: Are these tapes suitable for glass‑to‑metal bonding without engineering?

No for SGT. Structural glazing must be engineered and validated. For non‑structural décor or trims, Architectural grades may be suitable—ask us for guidance.

Q: What’s the difference between Architectural VHB and SGT?

Architectural grades serve non‑structural bonds (panels, trims, stiffeners). SGT is used as the primary structural bond in engineered glazing systems that undergo validation.

Deliver sleek façades and reliable performance—without visible fasteners. 3M™ VHB™ tapes enable high‑strength bonding for architectural panels, trims, and glazing. As a European converter, EKO‑TECH supplies slit‑to‑width rolls, die‑cuts, and project kits with surface‑prep solutions and process support for both Architectural and Structural Glazing (SGT) applications.

Select:

Benefits

Clean aesthetics: No rivets or screws; uninterrupted design lines
Fast assembly: Immediate handling strength; fewer wet processes
Durable outdoors: Acrylic foam resists weathering and UV
Manages movement: Viscoelastic core helps accommodate thermal expansion and vibration
Isolates dissimilar metals: Helps reduce galvanic corrosion risks
Consistent bond line: Controlled thickness for repeatable quality
Lower noise/weight: Lighter than many mechanical fixings; dampens vibration

Extra for SGT:

Uniform structural bond line: Precision thickness for engineered joints
Production efficiency: Tape application supports takt‑time; no wet cure for the tape

Talk to an EKO‑TECH Specialist about 3M™ VHB™ Architectural & SGT

Applications

Architectural (non‑structural):

ACM/metal composite panel bonding and stiffeners
Cladding cassettes, column covers, canopies, soffits, and trims
Interior glass/metal decorative features and partitions
Signage, wayfinding, and branding elements
Window muntins and frame accessories (non‑structural)

Structural Glazing (SGT, structural):

Glass‑to‑metal bonding in curtain wall and unitized modules
Vision and spandrel panel bonding (as engineered)
Mullion/transom interfaces designed for SGT joints
Glass stiffeners/fins where validated
Hybrid systems (SGT primary bond with specified secondary weather seal)

Architectural Tapes

Use 3M™ VHB™ Architectural grades where a permanent, high‑strength non‑structural bond is required. Typical goals: clean appearance, controlled bond line, and movement accommodation.

Highlights:

Broad substrate compatibility (metals, glass, many composites/paints)
Common colors: white/gray/black; multiple thicknesses for design freedom
Surface prep: cleaning plus adhesion promoter where recommended

When to choose Architectural vs. SGT:

Architectural for trims, cladding, panels, stiffeners, décor (non‑primary structural loads)
SGT when the joint is primary structural glass‑to‑frame bonding and must be engineered/validated

Structural Glazing Tapes (SGT)

3M™ VHB™ SGT enables primary structural bonding of glass to metal framing in engineered façade systems. Highlights:

Sleek design without exterior caps or visible fixings
Precisely controlled thickness/width per joint design
Designed for long‑term weathering and UV resistance

Engineering note: Structural glazing projects must follow applicable building codes and 3M SGT qualification steps. Joint design, substrate preparation, and environmental conditions require engineering approval and validation.

3M™ VHB™ Architectural Panel Tape B90F

3M™ VHB™ Structural Glazing Tape B23F

3M™ VHB™ Architectural Panel Tape B16F

3M™ VHB™ Architectural Panel Tape B11F

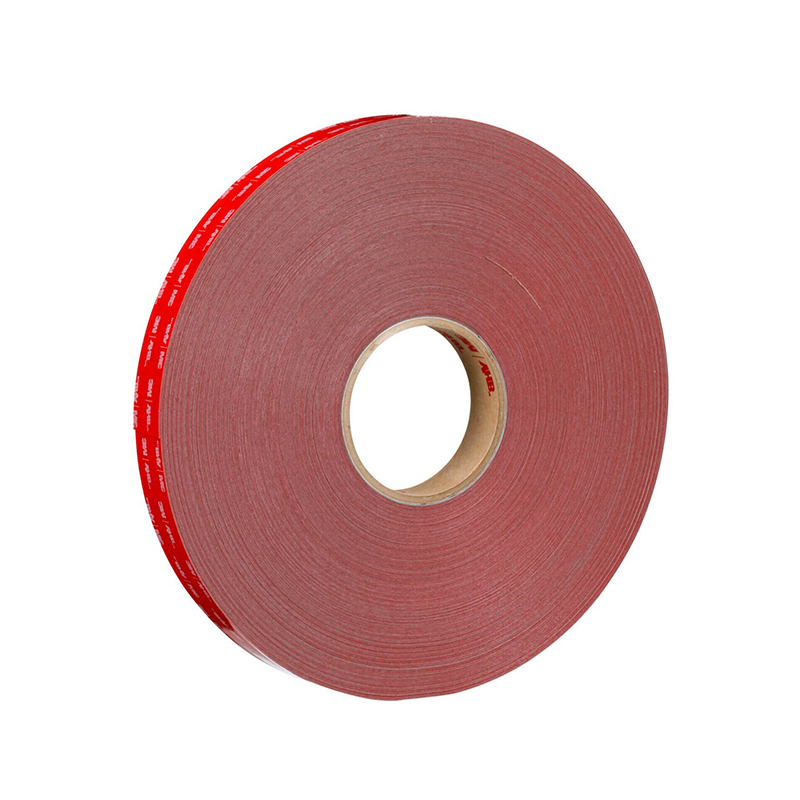

3M™ VHB™ Window Tape G45F

3M™ VHB™ Window Tape G45P

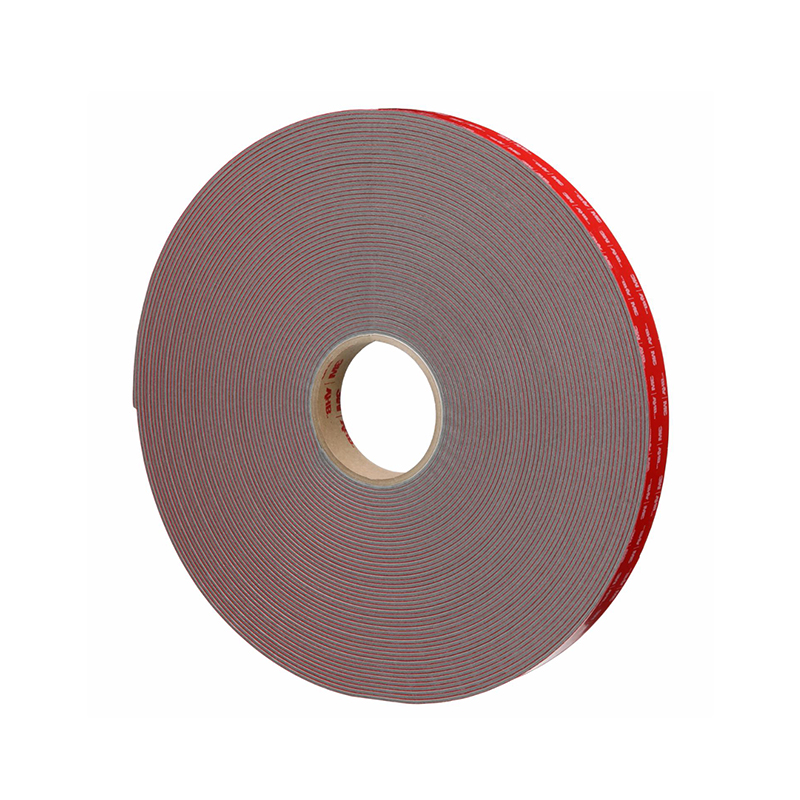

3M™ VHB™ Architectural Panel Tape G90F

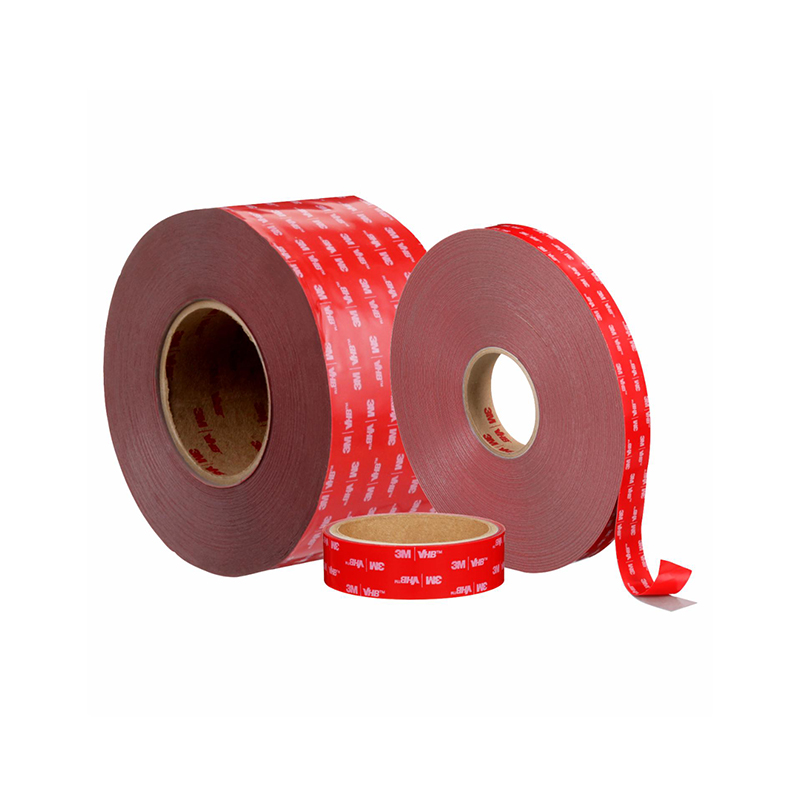

3M™ VHB™ Architectural Panel Tape G11F

3M™ VHB™ Architectural Panel Tape G16F

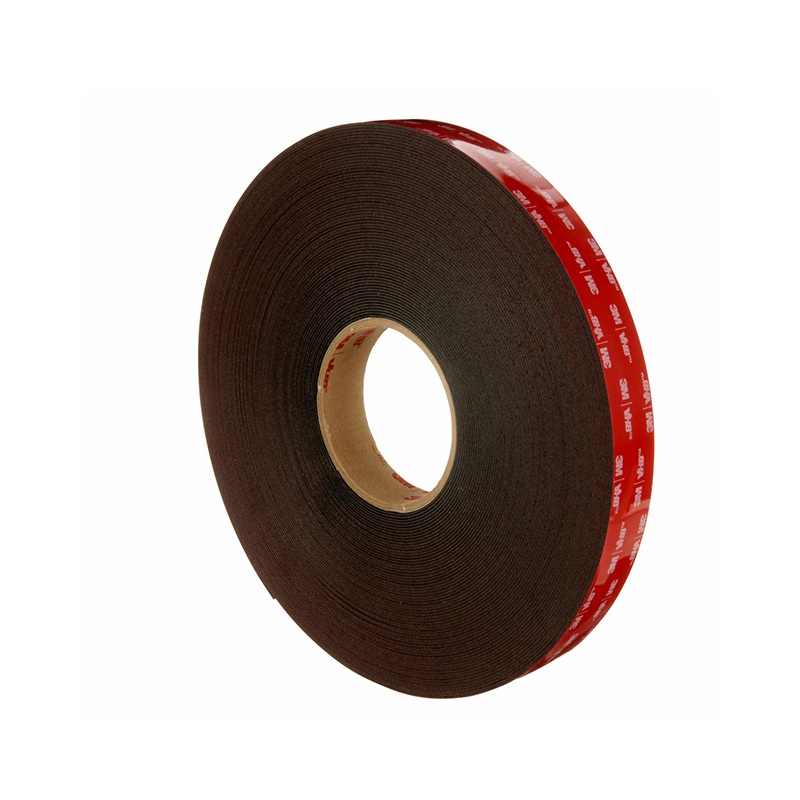

3M™ VHB™ Structural Glazing Tape G23F

Converting & Services

EKO‑TECH provides application‑ready materials and project support:

Slitting to width & custom lengths (tight tolerances for consistent joints)
Die‑cut & kiss‑cut parts (tabs, corners, vented shapes, spacers)
Lamination services (adhesion promoters/liners; multi‑layer builds)
Cross‑wound spooling for long, interruption‑free runs
Kitting & packaging (by module/zone, QR labels, traceability)
Prototyping & trials (mockups, pull/creep testing support)
Surface prep kits matched to substrates
EU‑wide logistics and multi‑language technical assistance

Request custom‑slit rolls, die‑cut kits, or SGT validation samples

Compliance & Validation

Architectural grades: for non‑structural bonds; follow 3M guidelines and good design practice.
SGT: for primary structural glazing only as part of a validated, engineered system that meets local codes and 3M’s SGT process. Final approval lies with the façade designer/engineer and authorities. A secondary weather seal may be required per specification.

Technical Specs & Selection (summary)

Dimensions: Width and thickness set by joint geometry and engineering calcs
Colors: Commonly white/gray/black (selection by application/visibility)
Surfaces: Clean; apply adhesion promoter when recommended by 3M/EKO‑TECH
Environment: Consider temperature, UV, moisture, thermal movement, loads

For a tailored recommendation, share drawings, substrate specs/finishes, bond lengths, and expected loads.

FAQ

Lead times and logistics?Monika Kluk2025-10-07T10:51:04+02:00

Lead times and logistics?

We plan conversion and delivery to your schedule with EU‑wide logistics and multi‑language support.

Are these tapes suitable for glass‑to‑metal bonding without engineering?Monika Kluk2025-10-07T10:49:53+02:00

Are these tapes suitable for glass‑to‑metal bonding without engineering?

No for SGT. Structural glazing must be engineered and validated. For non‑structural décor or trims, Architectural grades may be suitable—ask us for guidance.

What documentation can you provide?Monika Kluk2025-10-07T10:48:44+02:00

What documentation can you provide?

Material certificates, lot traceability, and project kitting/labeling. We coordinate supply with your module schedule.

Can you support mockups and testing?Monika Kluk2025-10-07T10:47:42+02:00

Can you support mockups and testing?

Yes—sample kits, mockup rolls, and die‑cuts for pull/creep testing and process trials.

Is a secondary weather seal needed with SGT?Monika Kluk2025-10-07T10:46:37+02:00

Is a secondary weather seal needed with SGT?

Often yes, but it’s project‑specific. The requirement should be defined in the engineering specification.

How are tape width and thickness selected?Monika Kluk2025-10-07T10:45:33+02:00

How are tape width and thickness selected?

By joint design and engineering calculations (load, bond length, expected movement). We’ll align specs to your drawings.

Do I need adhesion promoter?Monika Kluk2025-10-07T10:44:30+02:00

Do I need adhesion promoter?

Only where recommended for your substrates/finishes. EKO‑TECH provides the correct promoter and surface‑prep kits.

How do these tapes perform outdoors?Monika Kluk2025-10-07T10:43:25+02:00

How do these tapes perform outdoors?

Acrylic foam cores offer excellent weathering and UV resistance when matched to substrates and applied per 3M guidance.

What’s the difference between Architectural VHB and SGT?Monika Kluk2025-10-07T10:42:10+02:00

What’s the difference between Architectural VHB and SGT?

Architectural grades serve non‑structural bonds (panels, trims, stiffeners). SGT is used as the primary structural bond in engineered glazing systems that undergo validation.

Can VHB tapes replace rivets or screws on façades?Monika Kluk2025-10-07T10:40:59+02:00

Can VHB tapes replace rivets or screws on façades?

In many architectural panel and trim applications, yes—when properly designed and applied. Follow best practices and material supplier guidance.

About EKO‑TECH

EKO‑TECH is a European converter of self‑adhesive and technical materials. We slit, die‑cut, laminate, and kit 3M™ VHB™ tapes to your drawings—supporting prototypes through series production with lot traceability and EU‑wide logistics.
